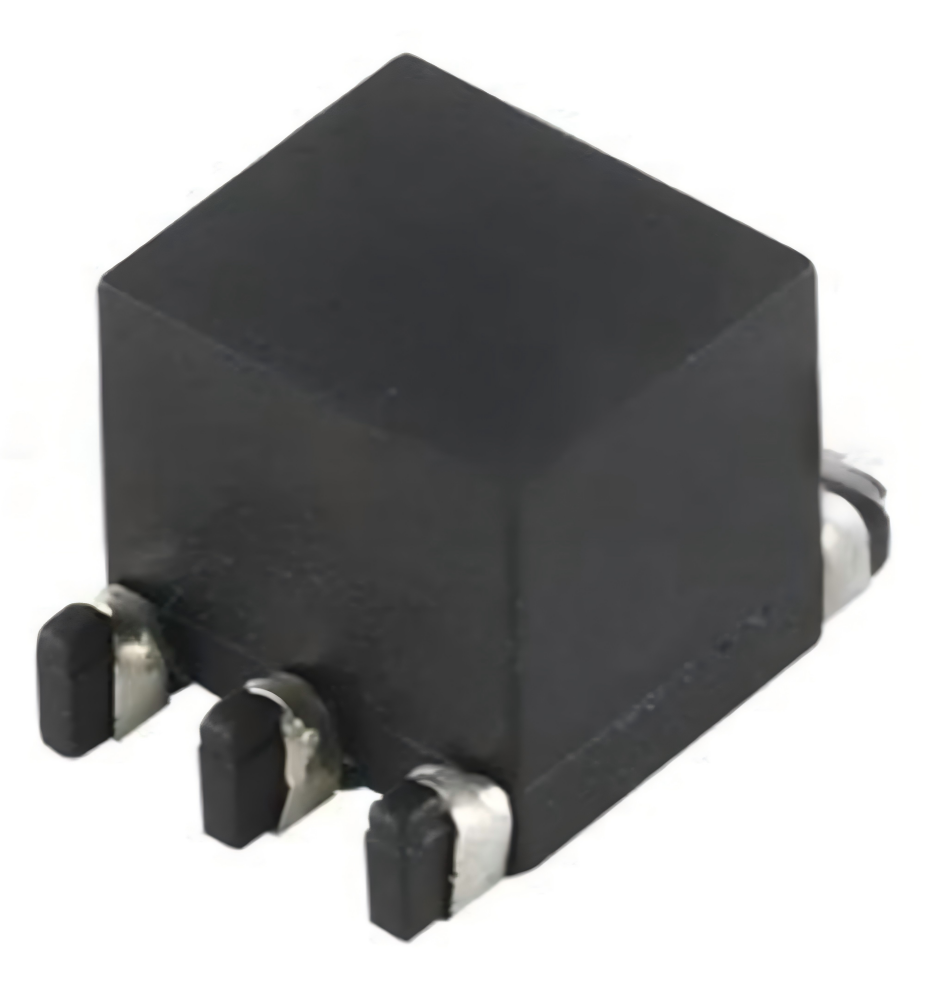

RF Transformer
RF Transformer - Image 2
RF Transformer - Image 3
RF Transformer - Image 4
RF Transformer - Image 5
RF Transformer - Image 6
RF Transformer - Image 7
RF Transformer - Image 8

RF Transformer

RF Transformer is a high-frequency transformer designed for RF signal transmission, impedance matching, and signal isolation in communication circuits. It provides low insertion loss, excellent amplitude and phase balance, and stable performance across wide frequency ranges. RF transformers are widely used in wireless communication systems, RF front-end modules, and high-frequency electronic equipment.

Category

Share This Items :

Description

Parameter Description Typical Range
Frequency Range Operating frequency 1 MHz – 8GHz
Insertion Loss Signal loss through the device 0.1 – 3.0 dB
Return Loss Port matching performance ≥ 10 – 25 dB
VSWR Voltage standing wave ratio 1.1:1 – 2.0:1
Isolation (for splitter / coupler) Isolation between output ports 18 – 40 dB
Coupling Factor (for directional coupler) Coupled signal attenuation 6, 10, 15, 20, 30 dB
Directivity (for directional coupler) Directional transmission performance 15 – 35 dB
Power Rating RF power handling 0.5 W – 200 W
Impedance System characteristic impedance 50 Ω / 75 Ω
Operating Temperature Ambient working temperature -40°C to +85°C / +125°C
Package Type Mounting style SMD, microstrip, connectorized
Phase Balance (for transformer) Phase difference between ports ±1° – ±10°
Amplitude Balance (for splitter) Amplitude imbalance ±0.1 – ±1.0 dB

RF Transformer Overview

RF Transformers are high-frequency components used in radio frequency circuits for signal coupling, impedance matching, and electrical isolation. They typically consist of a magnetic core (such as ferrite or air core), precision winding coils, and an insulating package designed for stable high-frequency operation.

These transformers are essential components in RF systems where efficient signal transmission and impedance control are required. By minimizing signal reflection and improving power transfer efficiency, RF transformers help ensure reliable performance in modern communication and electronic systems.

Structure

An RF transformer generally includes:

  • Magnetic core – ferrite core, air core, or transmission-line structure optimized for high-frequency operation

  • Winding coils – insulated copper windings designed for precise impedance and coupling characteristics

  • Insulating package – protective housing suitable for surface-mount (SMD) or module integration

This structure enables stable RF signal transfer while maintaining electrical isolation between circuits.

Key Functions

RF transformers perform several important functions in RF circuits:

  • Impedance matching between different circuit stages

  • Electrical isolation and DC blocking

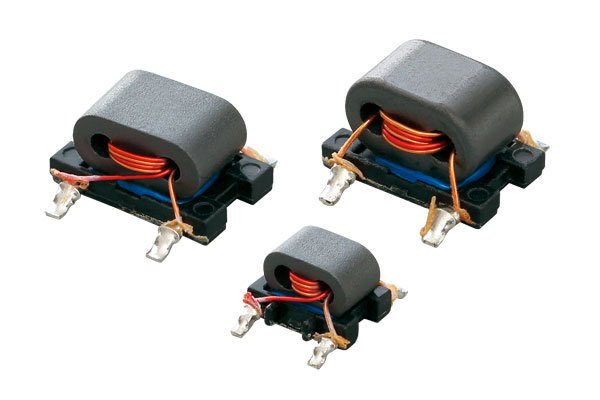

  • Balanced to unbalanced signal conversion (balun)

  • Phase shifting and signal coupling

  • Voltage transformation in RF signal paths

  • Reduction of signal reflection and improvement of power transfer efficiency

Electrical Performance

RF transformers are designed for reliable operation in high-frequency environments.

Key electrical characteristics include:

  • Wide frequency coverage from kHz to GHz ranges

  • Low insertion loss and high return loss

  • Excellent amplitude and phase balance

  • High isolation between input and output ports

  • Stable electrical performance across temperature ranges

  • Standard impedance options such as 50Ω and 75Ω

  • Compact size suitable for SMD integration and RF modules

These features make RF transformers ideal for modern wireless communication systems.

Typical Applications

RF transformers are widely used in many RF and microwave systems, including:

Communication Equipment

  • 5G macro base stations

  • Small cell RF front-end modules

  • Mobile phones and smartphones

  • WiFi 6 / WiFi 6E / WiFi 7 routers

  • Bluetooth and Zigbee modules

  • NB-IoT and LoRa communication devices

Broadcasting & Satellite Systems

  • CATV systems and set-top boxes

  • Satellite TV receivers

  • Broadcast transmitters

  • Digital radio systems (DAB / DVB)

Navigation & Radar Systems

  • GPS / GNSS navigation modules

  • Automotive radar systems

  • Industrial radar equipment

Industrial & IoT Devices

  • Smart meters

  • Industrial IoT gateways

  • Vehicle telematics systems

  • RFID readers and wireless sensors

Aerospace & Military Electronics

  • Military communication radios

  • Emergency walkie-talkies

  • Aerospace communication transceivers

  • Marine communication equipment

Other High-Frequency Equipment

  • RF power amplifiers and LNAs

  • Signal generators and spectrum analyzers

  • RF test fixtures and measurement equipment

  • Wireless microphones and communication modules

Key Advantages

  • Excellent RF signal transmission performance

  • Low insertion loss and high isolation

  • Wideband frequency operation

  • Compact size and SMD compatibility

  • High reliability in demanding RF environments

  • Suitable for modern wireless communication systems

Keywords

RF transformer, radio frequency transformer, balun transformer, RF balun transformer, impedance matching transformer, RF isolation transformer, high-frequency transformer, GHz RF transformer, SMD RF transformer, miniature RF transformer, broadband RF transformer, wideband RF transformer, transmission-line transformer, air-core RF transformer, ferrite RF transformer, 50Ω RF transformer, 75Ω RF transformer, RF signal transformer, differential RF transformer, single-ended to differential transformer.
