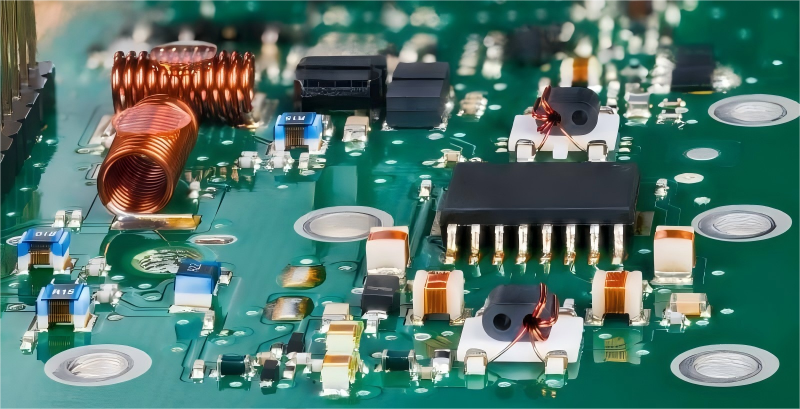

This close-up showcases the RF front-end PCB of a TV tuner—the unsung backbone of every smart TV, set-top box, and broadcast receiver.

Core Application

This circuit acts as the “signal gateway” for broadcast TV reception: it captures weak high-frequency RF signals from terrestrial, cable, or satellite networks, filters out interference, amplifies and down-converts target TV channel signals, and delivers stable, crystal-clear 4K/8K ultra-HD viewing experiences. Its RF design logic is also widely used in radios, satellite receivers, and IoT gateway RF front-ends.

Key Components & Their Critical Roles

Air Core Coils: The high-frequency workhorses! With zero core saturation and ultra-low loss at MHz-GHz bands, they build precision tuning/filtering networks to select target TV channels and maximize signal transmission via impedance matching.

Tuner IC (Semiconductor Microchip): The brain of the circuit! Integrates LNA, mixer, PLL, and AGC to amplify weak signals, down-convert RF to IF, and maintain stable output across varying signal strengths.

SMT Passives (Caps, Resistors, Inductors): The foundational building blocks! Form filter networks, suppress power noise, set stable operating points, and ensure long-term circuit reliability.

Ferrite Beads/Chokes: The EMC guardians! Block EMI/RFI noise, ensure global regulatory compliance, and protect the circuit from external interference.

In the era of next-gen broadcast and 8K TV, every component on this PCB is critical to signal integrity and end-user experience.
